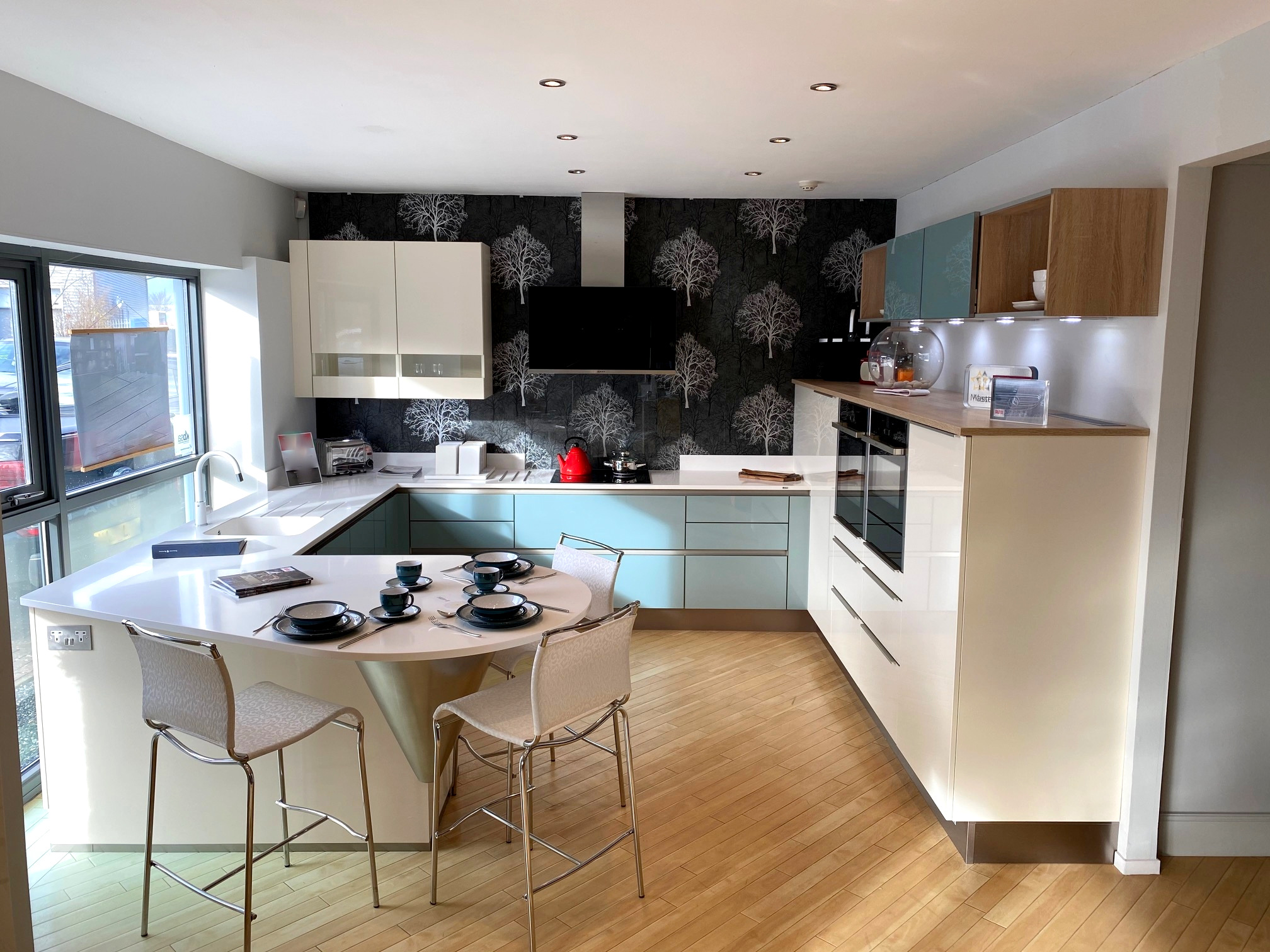

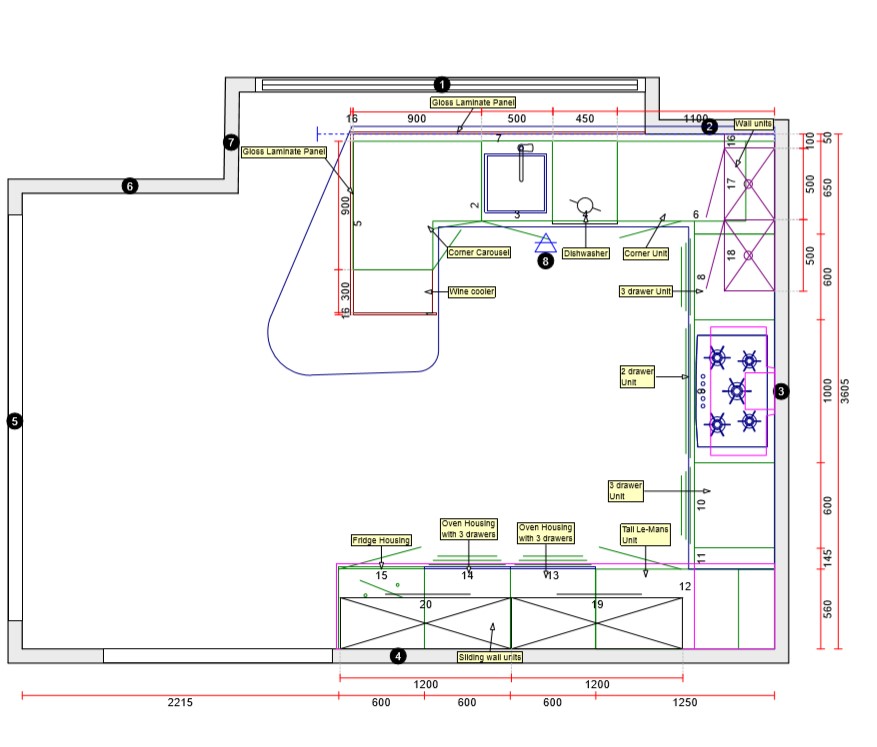

This kitchen is available for collection, please contact us for a delivery quote if delivery required. Plan view included with pics as well as measurements listed below.

TALL UNITS

1 x 600mm Fridge Housing (Right Hinged)

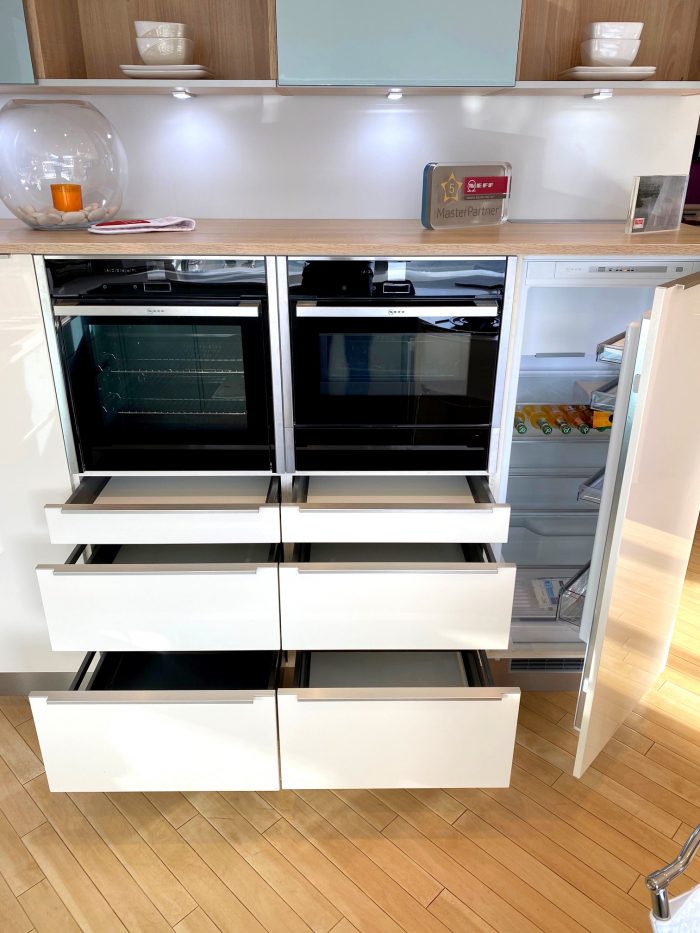

2 x 600mm Oven Housings with drawers underneath
1 x 1000mm Le Mans Corner unit, door is 600mm and left hinged. Comes with 4 pull outs
Overall 3055mm in length and 1300mm tall (ex. Plinth)

BASE UNITS

2 x 600mm 3 drawer unit (includes cutlery trays)
1 x 1000mm 2 drawer unit (includes drawer dividers)
1 x 900mm Corner Base Unit, door is 450mm (Right Hinged)
1 x 450mm Dishwasher door
1 x 500mm Sink Base (Left Hinged)
1 x 900mmx900mm carousel unit

WALL UNITS

2 x 500mm(W) x 350mm(D) x 910mm(H) Cupboards (Left Hinged),
2 x 1300mm(W) x 350mm(D) x 390mm(H) Sliding Door Units

APPLIANCES

1 x Caple Wine Cooler 300mm
1 x 415mm x 415mm Corian Mixa moulded sink with stainless steel base.
1 x Blanco Mida-S Pull Out White Tap

No other appliances are included

WORKTOP

24mm Corian in White Jasmine . Includes moulded sink (details above), drainer grooves, insets and trivet bars. Has cut-out for 600mm hob.
Please see drawing for Worktop sizes

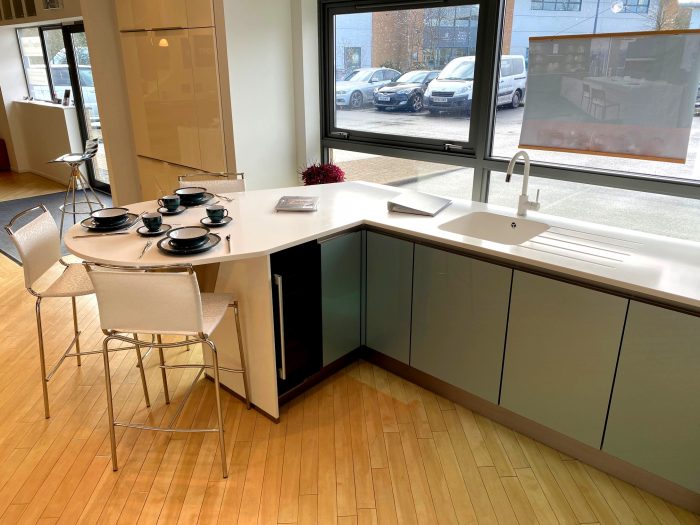

Bar Top area is shaped along to a circular area at the end, freeform therefore measurements are approximate:

MISC

Includes wood laminate top panel over the top of the bank of wall units.

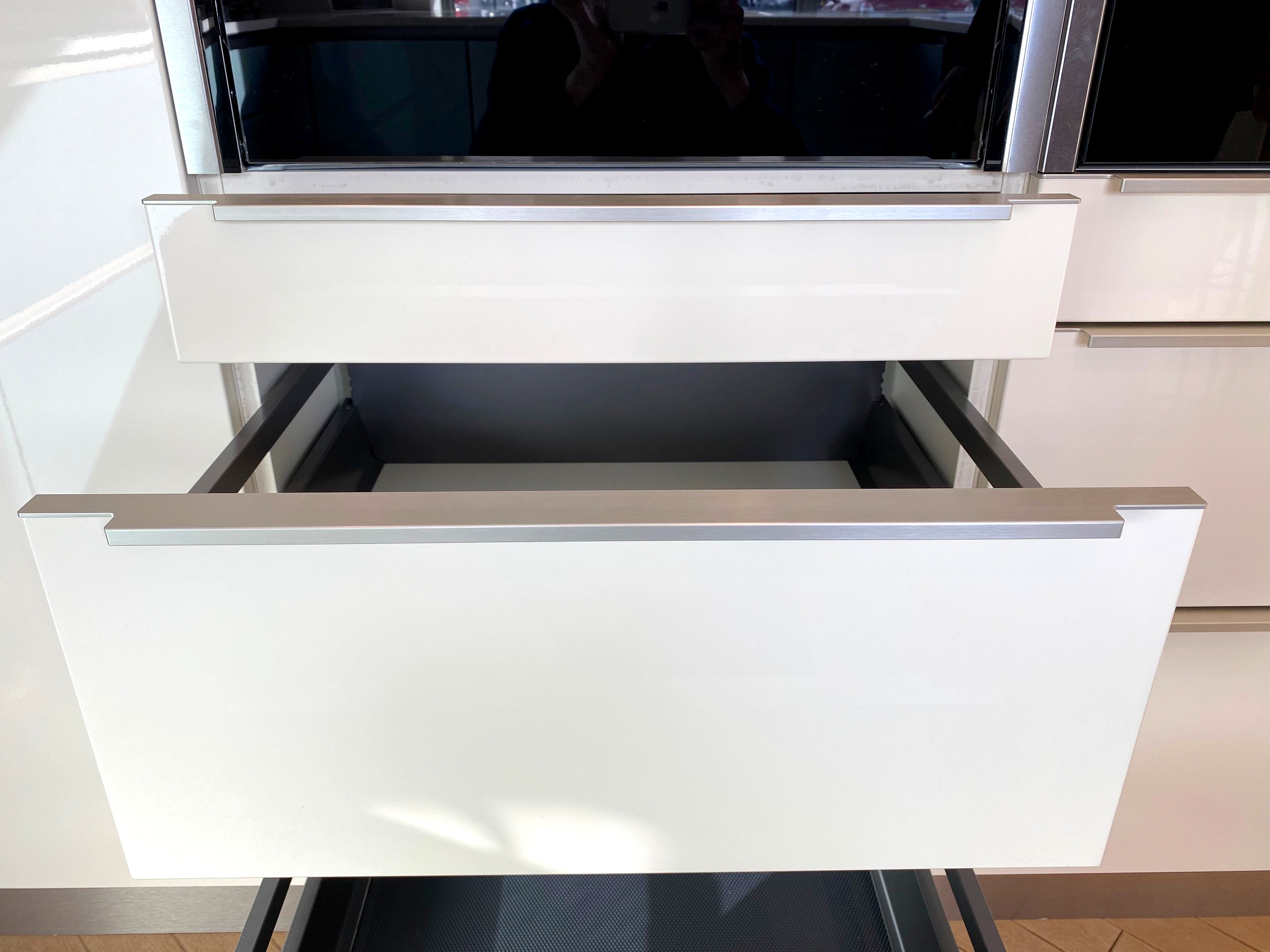

Tall units are in magnolia gloss and come with stainless steel strip handles.
Base units are in metallic oxide with stainless steel edging and are handleless. Base unit height is 715mm.
Magnolia wall units come with glaze panel inserts and glass shelves.
Plinth height is 155mm.
Bar Stools are not included.

PLEASE NOTE- Worktop included FOC if removed without damage.
